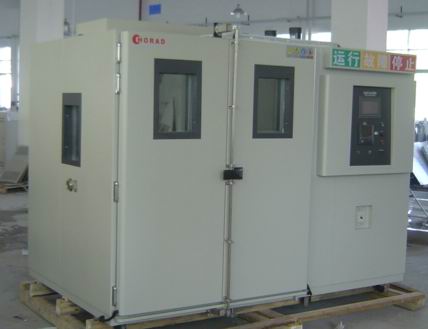

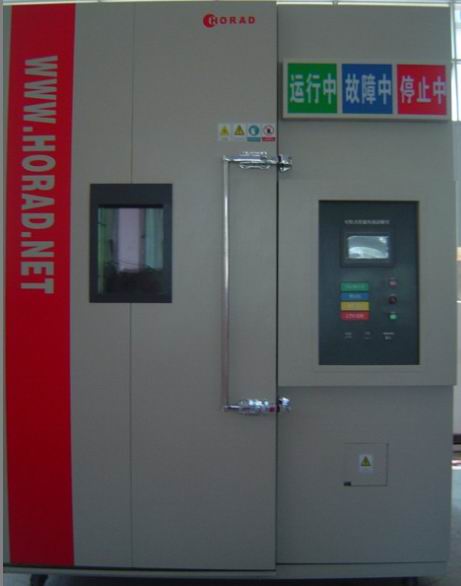

    Humid freeze and humid heat tester
    2010-11-15 14:40:45

    New specification



    Type

    H-PTH-3655DKH

    H-PTH-3000DKH

    Internal box size (W.H.D)mm

    1000 X 2200 X 1400

    1390×1600×1410

     External box size(W.H.D)mm

    2000 X 2750 X 1665

    2650 X 1970 X 1625

     Temperature range

    -50→+130

    -50→+150

     Humidity range

    20%98%RH

    20%98%RH

     Temperature rising rate

    0→+85     0.7-3/min linearwith load
    -40
    →+0    1-3.5/min linearwith load

    0→+150    0.7-2/min linearwith load
    -40
    →+0    1-3.5/min linearwith load

    Temperature falling rate

    +85→0   0.7-3/min linearwith load
    +0
    →-40   1-3.5/min linearwith load

    +150→0   0.7-2/min linearwith load
    +0
    →-40    1-3.5/min linearwith load

    Temperature fluctuation

    ±0.3

    ±0.3

    Humidity fluctuation

    ±2.0%R.H.

    ±2.5%R.H

    Weight(about)

    1860kg

    2600

    Power(about)

    42kW

    42 kW

    Environmental condition

    Temperature535  Relative humidity≤85%     Air pressure:86kPa106kPa
